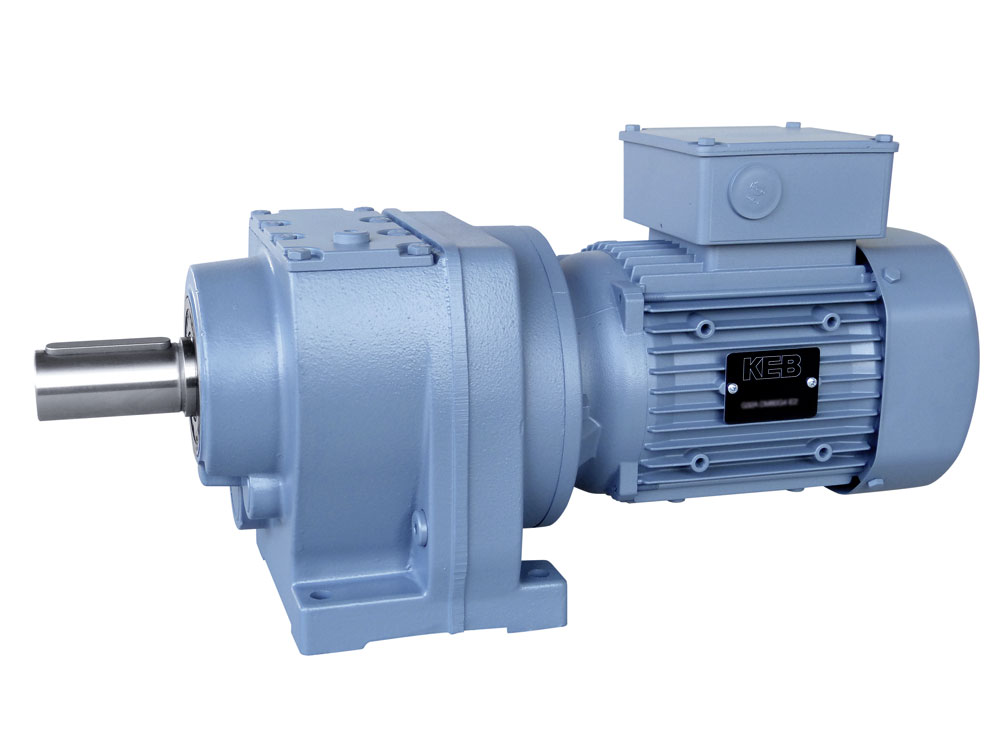

    Helical gear units / Helical geared motors

    Gear unitT2
    [Nm]    		Ratio
    (Double gearbox)    		P1
    [kW]    		Output shaft
    G0603.46 - 72.520.75Ø20x40
    G11173.37 - 115.34 (6085.3)1.5Ø20x40
    G22353.49 - 153.41 (10074)3Ø25x50
    G34803.56 - 177.27 (11893)5.5Ø30x60, Ø35x70
    G48753.61 - 210.05 (12756)11Ø40x80
    G516303.85 - 186.77 (13862)18.5Ø50x100
    G628003.96 - 221.95 (14755)22Ø60x120
    G748804.34 - 250.97 (19566)30Ø75x140
    G889005.92 - 186.96 (19895)45Ø90x170
    G9136005.43 - 157.04 (22255)90Ø110x210
    Gear unitT2
    [lb.in.]    		Ratio
    (Double gearbox)    		P1
    [Hp]    		Output shaft
    G05303.46 - 72.5210.750 in
    G110403.37 - 115.34 (6085.3)20.750 in
    G220803.49 - 153.41 (10074)41.000 in
    G342503.56 - 177.27 (11893)7.51.250 in
    G477403.61 - 210.05 (12756)151.625 in
    G5144003.85 - 186.77 (13862)252.000 in
    G6248003.96 - 221.95 (14755)302.375 in
    G7432004.34 - 250.97 (19566)403.000 in
    G8788005.92 - 186.96 (19895)603.625 in
    G91204005.43 - 157.04 (22255)1204.375 in

    Shaft mounted helical gear units / Shaft mounted helical geared motors

    Gear unitT2
    [Nm]    		Ratio
    (Double gearbox)    		P1
    [kW]    		Output shaft
    Hollow shaft (H)
    F22453.37 - 170.20 (9125.4)1.5Ø25x50
    H:Ø25
    F34703.70 - 190.26 (12764)4Ø30x60, Ø35x70
    H:Ø30, Ø35
    F48853.20 - 235.25 (16236)7.5Ø40x80
    H:Ø40
    F515803.80 - 205.64 (16911)15Ø50x100
    H:Ø50
    F628004.08 - 242.53 (20876)22Ø60x120
    H:Ø60
    F748804.32 - 274.23 (21379)30Ø75x140
    H:Ø70
    F889006.09 - 200.61 (22582)45Ø90x170
    H:Ø90
    Gear unitT2
    [lb.in.]    		Ratio
    (Double gearbox)    		P1
    [Hp]    		Output shaft
    Hollow shaft (H)
    F221703.37 - 170.20 (9125.4)21.000 in
    H:1.000 in
    F341603.70 - 190.26 (12764)5.51.250 in
    H:1.250 in
    F478303.20 - 235.25 (16236)101.625 in
    H:1.500 in
    F5140003.80 - 205.64 (16911)202.000 in
    H:2.000 in
    F6248004.08 - 242.53 (20876)302.375 in
    H:2.375 in
    F7432004.32 - 274.23 (21379)403.000 in
    H:2.750 in
    F8788006.09 - 200.61 (22582)603.625 in
    H:3.625 in

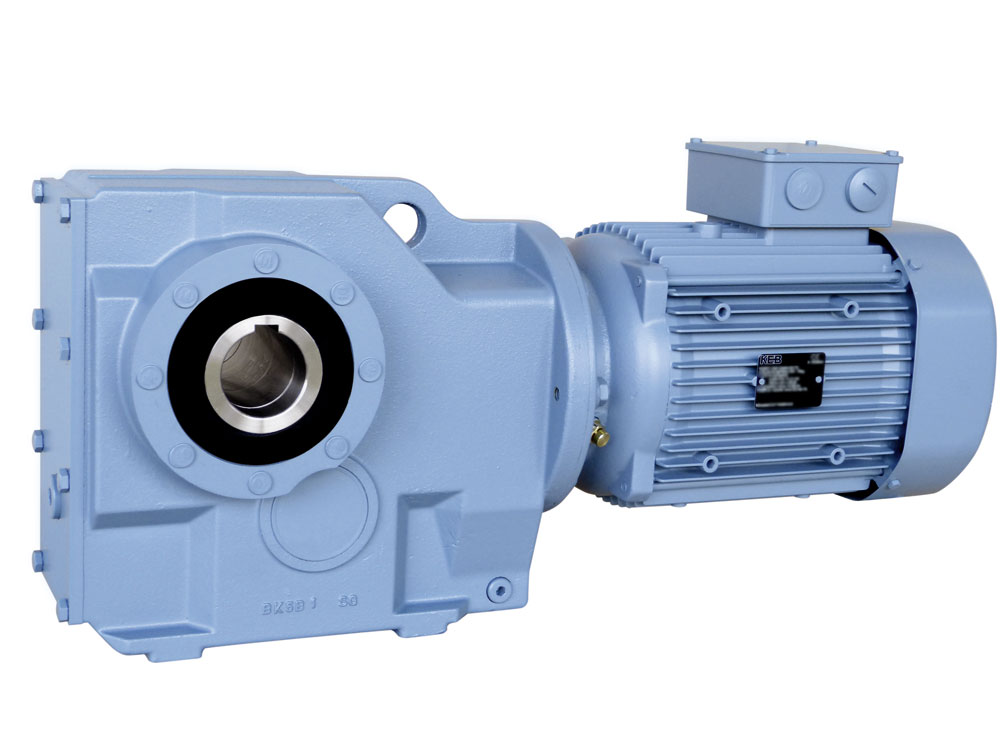

    Helical bevel gear units / Helical bevel geared motors

    Gear unitT2
    [Nm]    		Ratio
    (Double gearbox)    		P1
    [kW]    		Output shaft
    Hollow shaft (H)
    K0583.56 - 44.200.75Ø20x40
    H:Ø20
    K11103.38 - 54.60 (3959.5)1.5Ø25x50
    H:Ø25
    K22055.07 - 102.27 (5483.4)3Ø25x50
    H:Ø25
    K34005.14 - 120.13 (8059.3)4Ø30x60, Ø35x70
    H:Ø30, Ø35
    K47455.16 - 151.92 (10485)7.5Ø40x80
    H:Ø40
    K514305.69 - 138.94 (11426)15Ø50x100
    H:Ø50
    K625506.35 - 160.53 (13818)22Ø60x120
    H:Ø60
    K748807.29 - 183.21 (14283)30Ø75x140
    H:Ø70
    K879608.11 - 144.68 (16285)45Ø90x170
    H:Ø90
    K9122008.22 - 137.36 (19466)90Ø110x210
    H:Ø100
    Gear unitT2
    [lb.in.]    		Ratio
    (Double gearbox)    		P1
    [Hp]    		Output shaft
    Hollow shaft (H)
    K05803.56 - 44.20120 mm
    H:20 mm
    K110403.38 - 54.60 (3959.5)225 mm
    H:25 mm
    K218105.07 - 102.27 (5483.4)41.000 in
    H:1.000 in
    K335405.14 - 120.13 (8059.3)5.51.250 in
    H:1.250 in
    K465905.16 - 151.92 (10485)101.625 in
    H:1.500 in
    K5127005.69 - 138.94 (11426)202.000 in
    H:2.000 in
    K6226006.35 - 160.53 (13818)302.375 in
    H:2.375 in
    K7432007.29 - 183.21 (14283)403.000 in
    H:2.750 in
    K8704008.11 - 144.68 (16285)603.625 in
    H:3.625 in
    K91080008.22 - 137.36 (19466)1204.375 in
    H:4.000 in

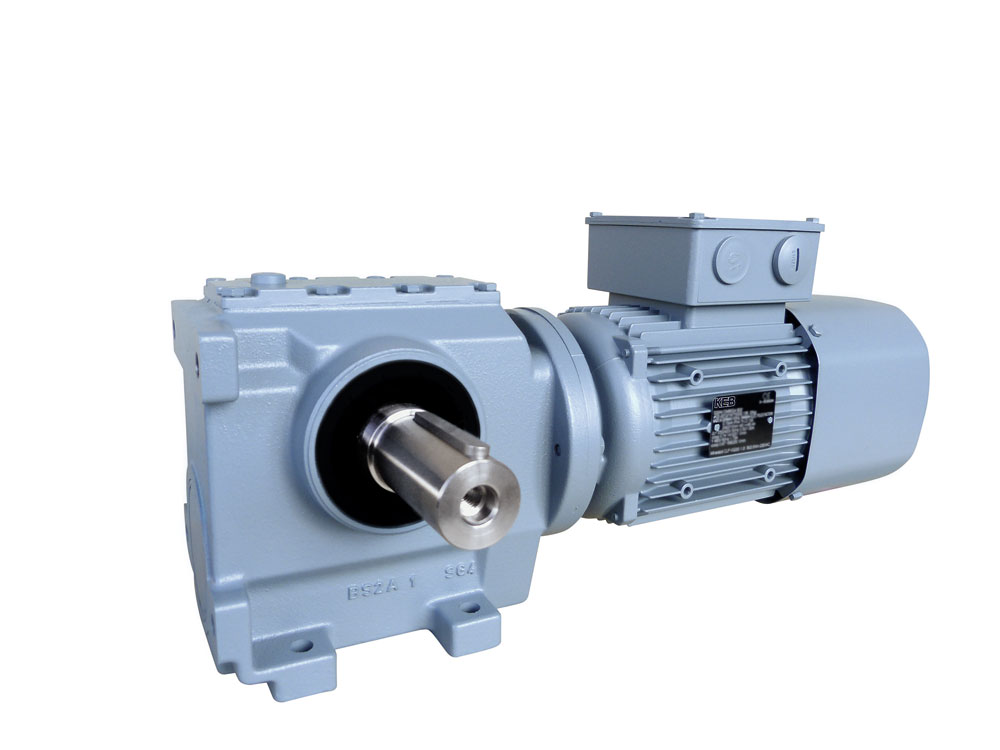

    Helical worm gear units / Helical worm geared motors

    Gear unitT2
    [Nm]    		Ratio
    (Double gearbox)    		P1
    [kW]    		Output shaft
    Hollow shaft (H)
    S0555.09 - 189.000.75Ø20x40
    H:Ø20
    S11627.00 - 168.00 (9007.5)1.5Ø25x50
    H:Ø25
    S22956.85 - 207.20 (13901)3Ø30x60, Ø35x70
    H:Ø30, Ø35
    S354013.33 - 271.60 (18745)4Ø40x80
    H:Ø40
    S4116014.07 - 247.58 (20360)7.5Ø50x100
    H:Ø50
    Gear unitT2
    [lb.in.]    		Ratio
    (Double gearbox)    		P1
    [Hp]    		Output shaft
    Hollow shaft (H)
    S04905.09 - 189.0010.750 in
    H:0.750 in
    S114307.00 - 168.00 (9007.5)21.000 in
    H:1.000 in
    S226106.85 - 207.20 (13901)41.250 in
    H:1.250 in
    S3478013.33 - 271.60 (18745)5.51.625 in
    H:1.500 in
    S41030014.07 - 247.58 (20360)102.000 in
    H:2.000 in
    T2 [Nm]
    Torque
    P1 [kW]
    Maximum input power
    T2 [lb.in.]
    Torque
    P1 [Hp]
    Maximum input power

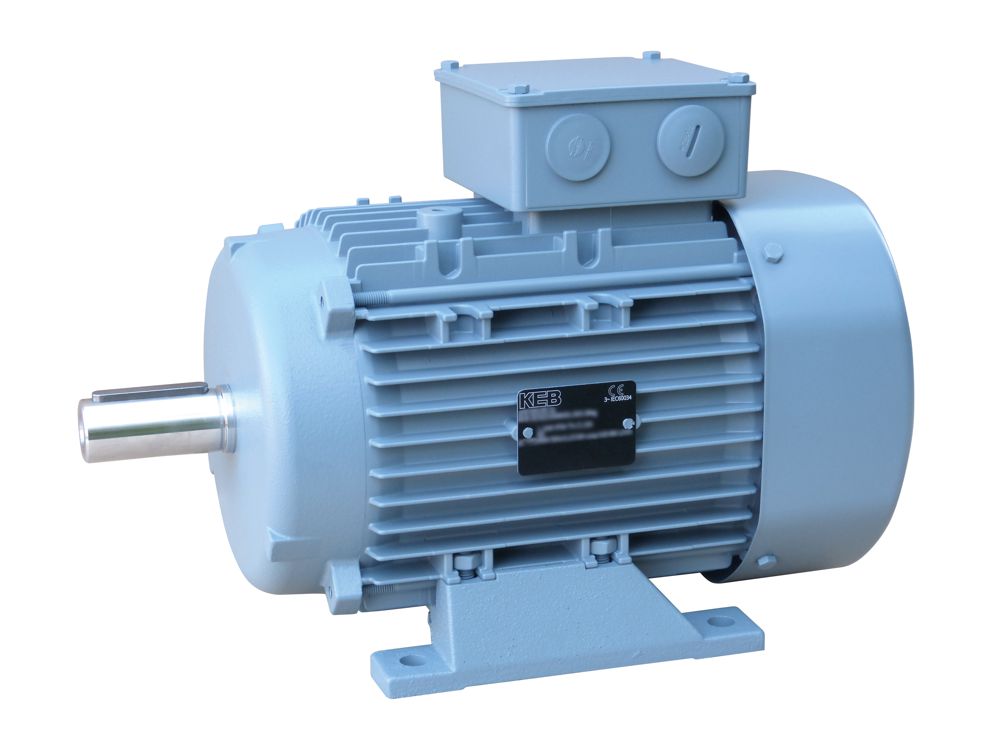

    Three phase motors

    • Motors 4-pole: 0.12..4 kW IE2/IE3, 5.5..45 kW IE3
    • Motors 4-pole: 0.16..5.5 HP IE2/IE3, 7.5..60 HP IE3
    • More Motors: 2, 6, 8, 4/2, 8/2 pole, Explosion proof motor, Single phase motor, Torque motor
    • Type of construction: B3, B14, B5, Brake, various encoder systems, Forced ventilation, Motor protection, UL, CCC
    • The motors can be supplied together with KEB gearboxes as a geared motor.

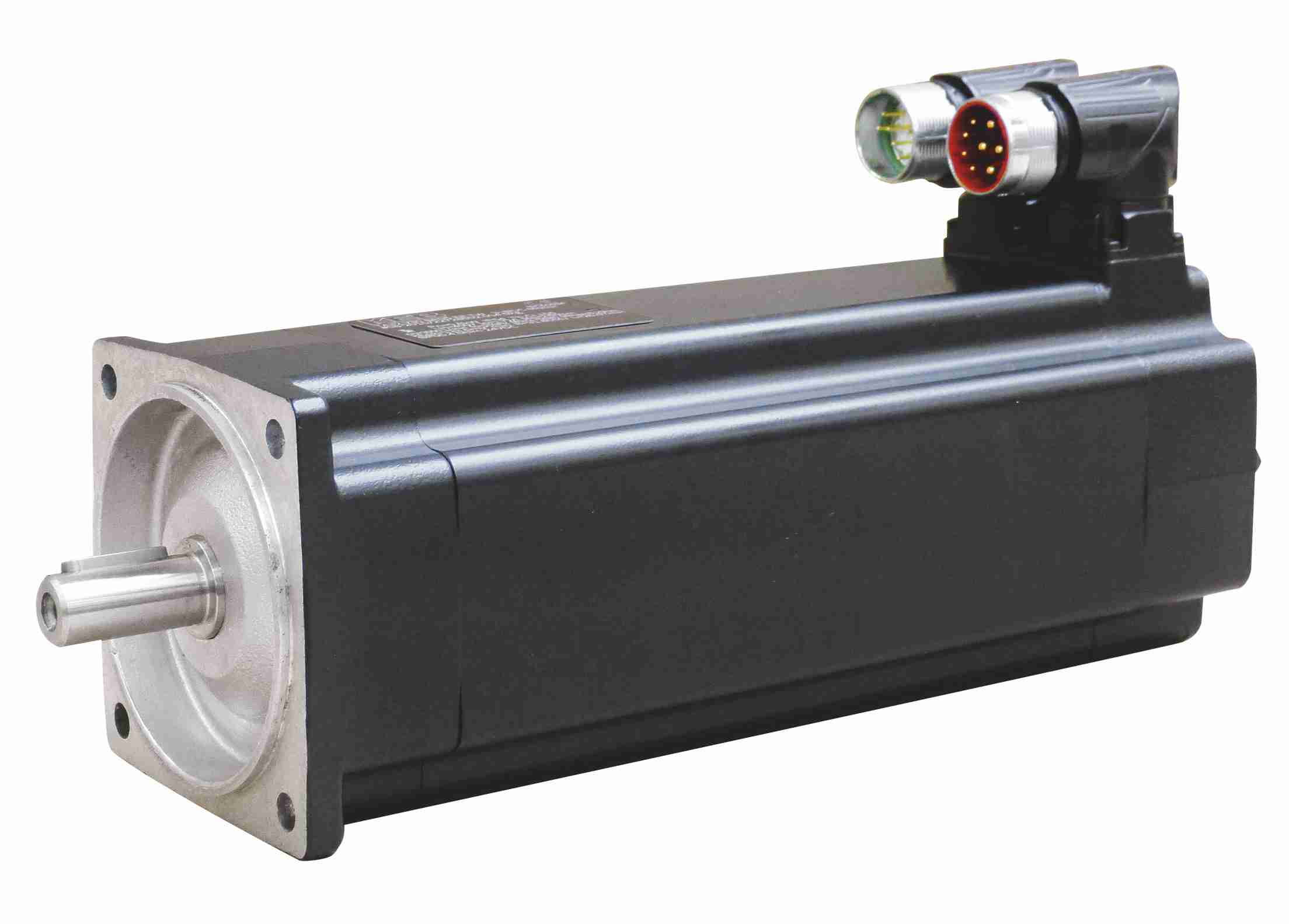

    Servo motors

    • AC servo-motor, suitable for KEB frequency inverter
    • Torque: 0.5 .. 64 Nm ( ..90Nm with Forced ventilation)
    • Motor speed: 1500, 2000, 3000, 4500 or 6000 rpm
    • Type of construction: Spring applied brake or Permanent magnet brake, various encoder systems, Motor protection, UL
    • The motors can be supplied together with KEB gearboxes as a geared motor.
